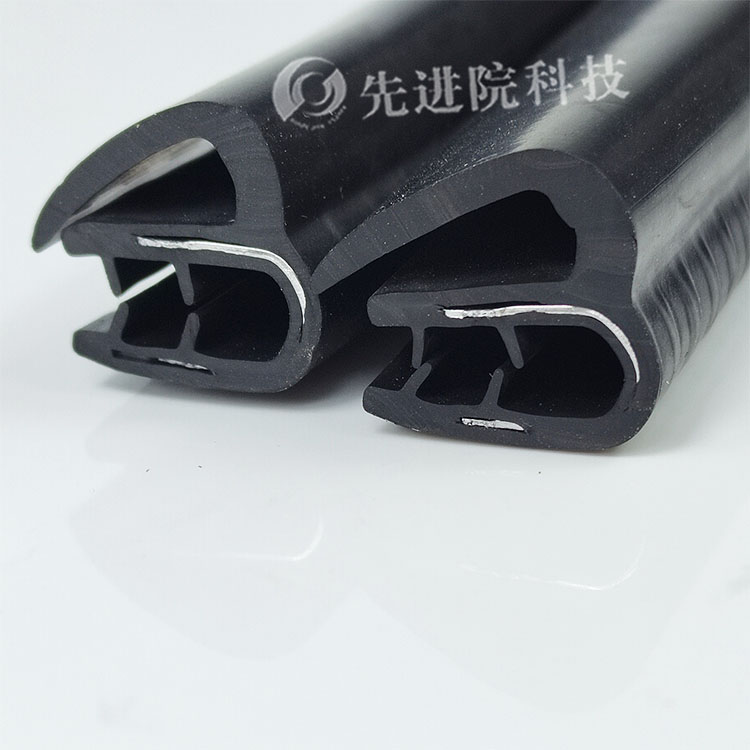

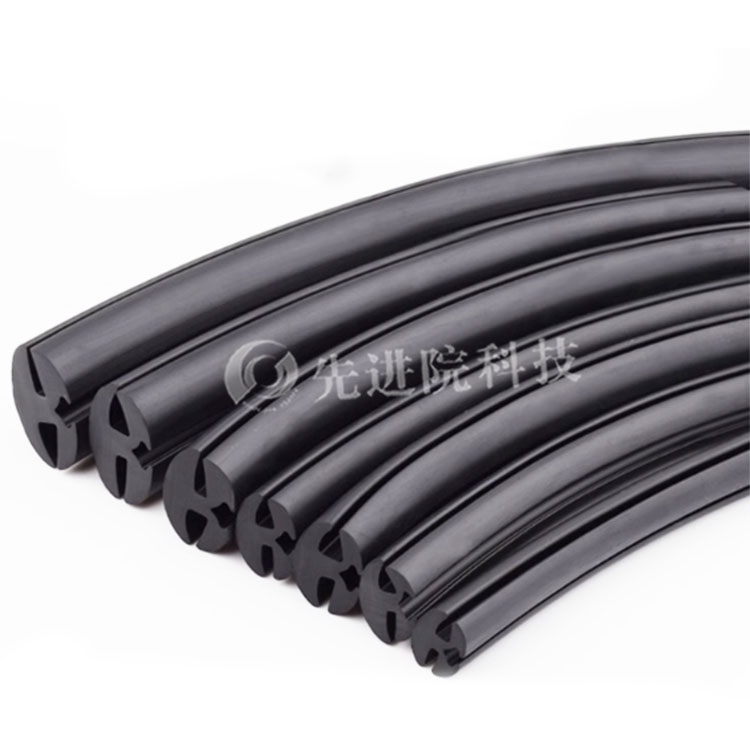

Composite extruded conductive rubber strips are a product made by mixing the conductive material with the rubber material.

1. Material selection:

Compound extruded conductive rubber strips are usually mixed with conductive materials (such as carbon black, metal powder, etc.) and mixing rubber materials (such as chores, silicone, etc.). The selection of conductive materials should have good conductive performance and can better compatible with rubber materials to ensure that the mixed conductive rubber strips have good conductive performance and the softness and weather resistance of rubber materials.

2. Squeezing process:

The preparation of composite extruded conductive rubber strips is mainly achieved through the extrusion process. First mix the conductive material with the rubber material according to a certain proportion, and pre -process it to ensure that the two materials are fully mixed. Then, put the mixed materials into the extruder, heat and melt the material through the rotation of the screw, and squeeze out the mold by the mold. The control requirements of the extrusion process are high. According to the specific material characteristics and process requirements, the temperature and extrusion speed of the extrusion machine must be adjusted to ensure that the conductive rubber strips obtained by the extrusion have the required size and mechanical performance.

3. Application field:

Composite extruded conductive rubber strips are widely used in electronics, power, and communication. Because the conductive rubber bar has good conductive performance and softness, it can be used for the shielding and grounding of electronic products to effectively avoid problems such as electromagnetic interference and static accumulation. At the same time, conductive rubber strips can also be used for external overflowing of insulation layers of transmission lines to improve the safety and stability of the line.

4. Note:

When preparing a composite squeeze conductive rubber strip, you need to pay attention to the following points:

-The selection and ratio of conductive materials should be reasonable to ensure that the conductive performance and the performance of rubber materials are balanced.

-The adjustment of squeezing process parameters should be accurate to ensure that the size and density of the conductive rubber strip obtained from the squeezed out meet the requirements.

-The conductive rubber strips should pay attention to environmental conditions such as waterproofing and moisture -proof during the application to avoid the effects of conductive performance.

-This and transportation of conductive rubber strips should be taken to avoid rubbing and damage to sharp objects, and avoid affecting its service life and performance.

Composite extruded conductive rubber strips are a product with the characteristics of conductive performance, softness and weather resistance. It has a wide range of application prospects in the electron and power field. In the process of preparing and application, you need to pay attention to the selection of materials, the control of the squeeze process, and related precautions to ensure the quality and performance of the product meet the needs.
